APD12N0.2-0.1-C0-P高壓DC-DC電源模塊SDS

發布時間：2024-08-07 09:46:32 瀏覽：630

　　APD系列高壓DC-DC轉換器是一款專為PCB安裝設計的超緊湊、調節型電源模塊。它以微型化、輕量化和低噪聲為特點，支持靈活的輸出電壓選項(0至200V、300V、400V或500Vdc)，并兼容5V或12Vdc的輸入電壓。該轉換器不僅提供卓越的線路和負載調節性能，還具備低紋波、短路和電弧保護功能，并可選擇電壓監測和禁用模式。其高頻開關設計確保無噪聲操作，非常適合精密和高要求的應用環境。

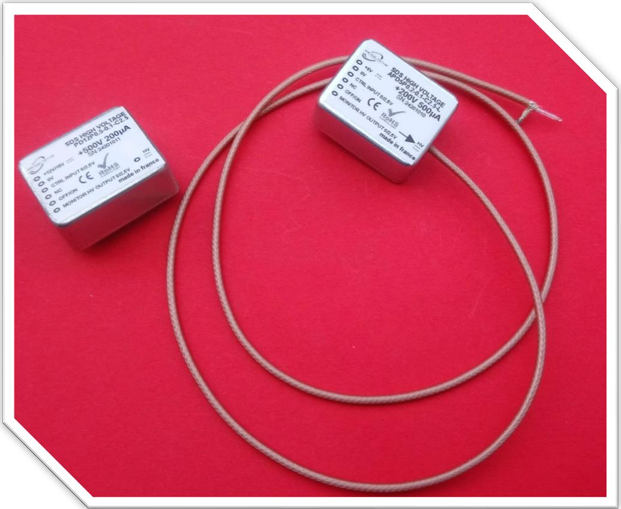

APD12N0.2-0.1-C0-P高壓DC-DC電源模塊SDS

　　包裝配置:

　　- 外殼材質：錫鋼板，內部接地

　　- 外殼尺寸：25.5mm長 x 20mm寬 x 11mm高(詳見機械圖)

　　- 引腳規格：0.63mm方形引腳

　　- 引線選項：同軸電纜RG178B/U，直徑2mm，長度50cm

　　- 重量：約13克

　　- 絕緣：UL認證的環氧樹脂全密封

型號：

AP series selection chart
Vout/lout 200Vdc/ 500μA	Vin	Polarity	Output style	REF 2.5V	#	Ordering references
	12Vdc		Pin	No	#1	APD12N0.2-0.1-C0-P
			Pin	Yes	#2	APD12N0.2-0.1-C2.5-P
			Coaxial cable	No	#3	APD12N0.2-0.1-C0-L
			Coaxial cable	Yes	#4	APD12N0.2-0.1-C2.5-L
		十	Pin	No	#5	APD12P0.2-0.1-C0-P
			Pin	Yes	#6	APD12P0.2-0.1-C2.5-P
			Coaxial cable	No	#7	APD12P0.2-0.1-C0-L
			Coaxial cable	Yes	#8	APD12P0.2-0.1-C2.5-L
	5Vdc		Pin	No	#9	APD5N0.2-0.1-C0-P
			Pin	Yes	#10	APD5N0.2-0.1-C2.5-P
			Coaxial cable	No	#11	APD5N0.2-0.1-C0-L
			Coaxial cable	Yes	#12	APD5N0.2-0.1-C2.5-L
		十	Pin	No	#13	APD5P0.2-0.1-C0-P
			Pin	Yes	#14	APD5P0.2-0.1-C2.5-P
			Coaxial cable	No	#15	APD5P0.2-0.1-C0-L
			Coaxial cable	Yes	#16	APD5P0.2-0.1-C2.5-L
300Vdc/ 330μA	12Vdc		Pin	No	#17	APD12N0.3-0.1-C0-P
			Pin	Yes	#18	APD12N0.3-0.1-C2.5-P
			Coaxial cable	No	#19	APD12N0.3-0.1-C0-L
			Coaxial cable	Yes	#20	APD12N0.3-0.1-C2.5-L
		十	Pin	No	#21	APD12P0.3-0.1-C0-P
			Pin	Yes	#22	APD12P0.3-0.1-C2.5-P
			Coaxial cable	No	#23	APD12P0.3-0.1-C0-L
			Coaxial cable	Yes	#24	APD12P0.3-0.1-C2.5-L
	5Vdc		Pin	No	#25	APD5N0.3-0.1-C0-P
			Pin	Yes	#26	APD5N0.3-0.1-C2.5-P
			Coaxial cable	No	#27	APD5N0.3-0.1-C0-L
			Coaxial cable	Yes	#28	APD5N0.3-0.1-C2.5-L
		十	Pin	No	#29	APD5P0.3-0.1-C0-P
			Pin	Yes	#30	APD5P0.3-0.1-C2.5-P
			Coaxial cable	No	#31	APD5P0.3-0.1-C0-L
			Coaxial cable	Yes	#32	APD5P0.3-0.1-C2.5-L
400Vdc/ 250μA	12Vdc		Pin	No	#33	APD12N0.4-0.1-C0-P
			Pin	Yes	#34	APD12N0.4-0.1-C2.5-P
			Coaxial cable	No	#35	APD12N0.4-0.1-C0-L
			Coaxial cable	Yes	#36	APD12N0.4-0.1-C2.5-L
			Pin	No	#37	APD12P0.4-0.1-C0-P
		十		Yes	#38	APD12P0.4-0.1-C2.5-P
			Coaxial cable	No	#39	APD12P0.4-0.1-C0-L
			Coaxial cable	Yes	#40	APD12P0.4-0.1-C2.5-L
	5Vdc		Pin	No	#41	APD5N0.4-0.1-C0-P
			Pin	Yes	#42	APD5N0.4-0.1-2.5-P
			Coaxial cable	No	#43	APD5N0.4-0.1-C0-L
			Coaxial cable	Yes	#44	APD5N0.4-0.1-C2.5-L
		十	Pin	No	#45	APD5P0.4-0.1-C0-P
			Pin	Yes	#46	APD5P0.4-0.1-C2.5-P
			Coaxial cable	No	#47	APD5P0.4-0.1-C0-L
			Coaxial cable	Yes	#48	APD5P0.4-0.1-C2.5-L
500Vdc/ 200μA	12Vdc		Pin	No	#49	APD12N0.5-0.1-C0-P
			Pin	Yes	#50	APD12N0.5-0.1-C2.5-P
			Coaxial cable	No	#51	APD12N0.5-0.1-C0-L
			Coaxial cable	Yes	#52	APD12N0.5-0.1-C2.5-L
		十	Pin	No	#53	APD12P0.5-0.1-C0-P
			Pin	Yes	#54	APD12P0.5-0.1-C2.5-P
			Coaxial cable	No	#55	APD12P0.5-0.1-C0-L
			Coaxial cable	Yes	#56	APD12P0.5-0.1-C2.5-L
	5Vdc		Pin	No	#57	APD5N0.5-0.1-C0-P
			Pin	Yes	#58	APD5N0.5-0.1-C2.5-P
			Coaxial cable	No	#59	APD5N0.5-0.1-C0-L
			Coaxial cable	Yes	#60	APD5N0.5-0.1-C2.5-L
		十	Pin	No	#61	APD5P0.5-0.1-C0-P
			Pin	Yes	#62	APD5P0.5-0.1-C2.5-P
			Coaxial cable	No	#63	APD5P0.5-0.1-C0-L
			Coaxial cable	Yes	#64	APD5P0.5-0.1-C2.5-L
