Arizona Capacitors 60-08102玻璃管狀紙膜電容
發布時間：2024-08-30 10:04:39 瀏覽：571
Arizona

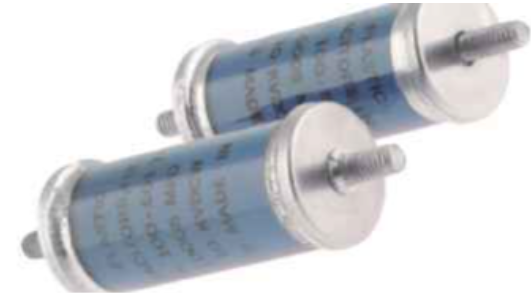

Capacitors推出的60系列玻璃管狀紙膜電容，以其獨特的設計和卓越的性能，在電子行業中樹立了新的標桿。這一系列電容不僅在額定電壓、容量和溫度范圍上表現出色，還通過了多項嚴格的質量和環境標準測試，確保其在各種應用中的可靠性和穩定性。
主要特點
額定電壓范圍：從1,000 VDC至20,000 VDC。
容量范圍：最大可達0.5000μF。
容差范圍：從±2%至±20%。
工作溫度范圍：-55°C至85°C。
絕緣電阻：25 - 50k ΩF。
損耗因子：在1,000Hz時小于0.6%。
質量保證：通過150%的額定電壓測試(1分鐘)，符合ISO 9001:2015認證和MIL-STD-202標準測試。
環境友好：可請求ROHS合規。
尺寸和規格
60系列電容采用玻璃或陶瓷管結構，配備#8-32螺絲接口，長度公差±0.125英寸，直徑公差±0.062英寸，確保安裝的精確性和便捷性。
各電壓等級的型號列表
| MODEL |
| 1 kV MODELS |
| MODEL | 2 kV MODELS |
| MODEL | 3 kV MODELS
(μf) DIA LENGTH |
| (pf) | DIA | LENGTH |
| (μf) | DIA | LENGTH |
|
| 60x01202 | 0.0020 | 0.530 | 1-3/16 |
| 60x02202 | 0.0020 | 0.530 | 1-3/16 |
| 60x03202 | 0.0020 | 0.530 | 1-3/16 |
| 60x01502 | 0.0050 | 0.530 | 1-3/16 |
| 60x02502 | 0.0050 | 0.530 | 1-3/16 |
| 60x03502 | 0.0050 | 0.530 | 1-3/16 |
| 60x01103 | 0.0100 | 0.530 | 1-3/16 |
| 60x02103 | 0.0100 | 0.530 | 1-3/16 |
| 60x03103 | 0.0100 | 0.530 | 1-9/16 |
| 60x01203 | 0.0200 | 0.530 | 1-3/16 |
| 60x02203 | 0.0200 | 0.530 | 1-9/16 |
| 60x03203 | 0.0200 | 0.690 | 1-3/4 |
| 60x01503 | 0.0500 | 0.530 | 1-9/16 |
| 60x02503 | 0.0500 | 0.690 | 1-3/4 |
| 60x03503 | 0.0500 | 0.690 | 2-1/4 |
| 60x01104 |
| 0.1000 | 0.690 | 2-1/4 |
| 60x02104 | 0.1000 | 0.690 | 2-1/4 |
| 60x03104 | 0.1000 | 0.840 | 2-1/4 |
| 60x01254 | 0.2500 | 0.840 | 2-1/4 |
| 60x02254 | 0.2500 | 1.060 | 2-3/8 |
| 60x03254 | 0.2500 | 1.060 | 2-3/8 |
| 60x01504 |
| 0.5000 | 1.060 | 2-1/4 |
| 60x02504 | 0.5000 | 1.310 | 2-3/4 |
| 60x03504 | 0.5000 | 1.310 | 2-3/4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| MODEL | 5 kV MODELS |
| MODE | 7.5 kV MODELS |
| MODEL | 10 | kV MODELS |
| (μf) | DIA | LENGTH |
| (μf) | DIA | LENGTH |
| (μf) | DIA | LENGTH |
| 60x05102 | 0.0010 | 0.530 | 1-9/16 |
| 60-08102 | 0.0010 | 0.530 | 1-9/16 |
| 60x10102 | 0.0010 | 0.530 | 1-9/16 |
| 60x05202 | 0.0020 | 0.530 | 1-9/16 |
| 60-08202 | 0.0020 | 0.530 | 1-9/16 |
| 60x10202 | 0.0020 | 0.530 | 1-9/16 |
| 60x05502 | 0.0050 | 0.530 | 1-9/16 |
| 60-08502 | 0.0050 | 0.690 | 1-3/4 |
| 60x10502 | 0.0050 | 0.690 | 1-3/4 |
| 60x05103 | 0.0100 | 0.690 | 1-3/4 |
| 60-08103 | 0.0100 | 0.690 | 2-1/4 |
| 60x10103 | 0.0100 | 0.840 | 2-1/4 |
| 60x05203 | 0.0200 | 0.690 | 2-1/4 |
| 60-08203 | 0.0200 | 0.840 | 2-1/4 |
| 60x10203 | 0.0200 | 1.060 | 2-1/4 |
| 60x05503 | 0.0500 | 0.840 | 2-1/4 |
| 60-08503 | 0.0500 | 1.310 | 2-3/4 |
| 60x10503 | 0.0500 | 1.310 | 2-3/4 |
| 60x05104 | 0.1000 | 1.060 | 2-1/4 |
| 60-08104 | 0.1000 | 1.310 | 2.3/4 |
| 60x10104 | 0.1000 | 1.750 | 4-11/32 |
| 60x05254 | 0.2500 | 1.310 | 2-3/4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| MODEL | 15 | kV MODELS |
| MODE | 20 | kV MODELS |
| To complete the part number |
| (μf) | DIA | LENGTH |
| μf | DA | LENGTH |
| replace xwith one of the the following: |
| 60x15501 |
| 0.0005 | 0.690 | 2-1/4 |
| 60x20501 | 0.0005 | 0.690 | 2-1/4 |
| x=Tolerance |
| 60x15102 |
| 0.0010 | 0.690 | 2-1/4 |
| 60x20102 |
| 0.0010 | 0.690 | 2-1/4 |
| J=±5% |
| 60x15202 |
| 0.0020 | 0.840 | 2-1/4 |
| 60x20202 |
| 0.0020 | 0.840 | 2-1/4 |
| K=±10% |
|
| V=+20/-10% |
| 60x15502 |
| 0.0050 | 0.840 | 2-1/4 |
| 60x20502 |
| 0.0050 | 1.060 | 2-3/4 |
| M=±20% |
| 60x15103 |
| 0.0100 | 1.060 | 2-1/4 |
| 60x20103 |
| 0.0100 | 1.310 | 2-3/4 |
|
|
| 60x15203 |
| 0.0200 | 1.310 | 2-3/4 |
| 60x20203 |
| 0.0200 | 1.750 | 4-11/32 |
|
|
| 60x15503 |
| 0.0500 | 1.750 | 4-11/32 |
|
|
|
|
|
|
|
|
