S239391,S239447,S239399,TC239394,TC239448非金屬外殼微型傳感器Minco

發布時間：2025-07-22 10:14:43 瀏覽：1485

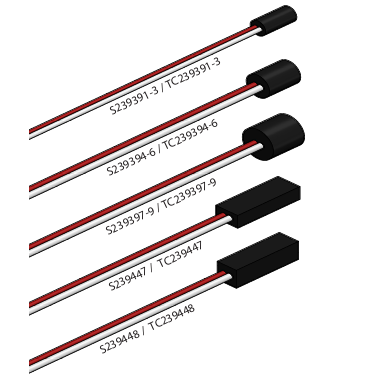

　　Minco非金屬外殼微型傳感器

用途：適用于工業和商業應用，可安裝在鉆孔部件、設備表面或電機繞組中。

　　外殼材料：標準外殼由DAP(二烯丙基鄰苯二甲酸酯)制成，元件封裝在高溫導熱環氧樹脂中。

　　主要特點：

　　易于安裝：無縫安裝，適應多種安裝方式。

　　電氣絕緣：適合高電壓環境，確保安全。

　　兼容性強：鉑RTD元件和熱電偶設計，適配多種控制系統。

　　定制選項：提供多種配置，包括鉑、鎳元件和E、J、K、T型熱電偶。

　　外殼樣式：多種圓柱形和矩形外殼，可定制引線長度和覆蓋。

　　性能指標：

　　時間常數：<10秒(流動水中)

　　絕緣電阻：≥10兆歐姆(100VDC)

　　絕緣強度：1500V有效值(60Hz)

　　抗振性能：10-2000Hz，20G(符合MIL-STD-202)

型號參數：

Model number	Case dimensions	RTD Element options	Leadwire options	AWG Single 2 lead	AWG Single 3 lead	AWG Single 4 lead	AWG Dual element	Temp range	Lead Covering options
S239391	.125"diameter,250"length	PA,PD, PE,PF PM,NA	v,W,XY,Z	24	26	30	30	-50 to200℃(-58 to392°F)	T,S,F,R,E
S239392	.125"diameter,375"length
S239393	.125"diameter,500"length
S239394	.188"diameter,500"length	PA,PD, PE,PF, PM,NA	U,V,W,XY,Z	24	24	28	28	-50 to200℃ (-58 to392°F)	T,S,F,R,E
S239395	.188"diameter,500"length
S239396	.188"diameter,500"length
S239397	.250"diameter,500"length	PA,PD, PE,PF, PM,NA	U,V,W,XY,Z	24	24	24	28	-50 to200℃ (-58 to392°F)	T,S,F,R,E
S239398	.250"diameter,500"length
S239399	.250"diameter,500"length
S239447	.177"wide X.110"thick X.500 Long	PA,PD, PE,PF. PM,NA	U,Vw,XY,Z	24	26	26	NA	-50 to200℃ (-58 to392°F)	T,S,F,R,E
S239448	.155"wide X.155"thick X 495 Long	PA,PD, PE,PF, PM,NA	U,VW,XY,Z	24	26	30	30	-50 to200℃ (-58 to392°F)	T,S,F,R,E

Model number	Case dimensions	Junction type	Leadwire covering	AWG	Temp range
TC239391	.125"diameter,.250"length	E,J,K,T(available in single element configurations)	T,S,F,R,E	24	-184 to 200℃ (-299 to 392F)
TC239392	.125"diameter,.375”length
TC239393	.125"diameter,500"length
TC239394	.188"diameter,250"length	E,J,K,T(available in single element configurations)	T,S,F,R,E	24	-184 to 200℃ (-299 to 392°F)
TC239395	.188"diameter,.375”length
TC239396	.188"diameter,500"length
TC239397	.250"diameter,250"length	EJ,K,T(available in single element configurations)	T,S,F,R,E	24	-184 to 200℃ (-299 to 392°F)
TC239398	.250"diameter,375"length
TC239399	.250"diameter,.500"length
TC239447	.177"wideX.110"thick X.500 Long	E,J,K,T(available in single element configurations)	T,S,F,R,E	24	-184 to 200℃ (-299 to 392°F)
TC239448	.155"wide X.155”thick X.495 Long	E,J,K,T(available in single element configurations)	T,S,F,R,E	24	-184 to 200℃ (-299 to 392°F)

Minco是一家專注于為嚴苛應用提供溫度傳感與控制、熱加熱、柔性電路及集成解決方案。其產品廣泛應用于醫療、航空航天、半導體、能源等多個行業。深圳市立維創展科技有限公司優勢分銷Minco產品，歡迎咨詢了解。
