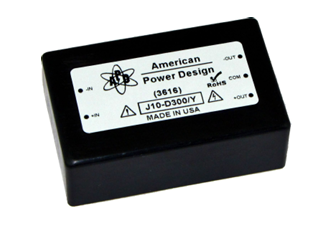

J10-300/Y DC-DC直流高壓電源模塊
發布于：2025-03-07 10:43:24
品牌名稱：American Power Design(APD)
重要參數：
輸入電壓：0-15Vdc
輸出電壓：0-3000Vdc
輸出功率：10W
| REPRESENTATIVE MODEL LISTING |
| MODEL NUMBER | INPUT SPECIFICATIONS | OUTPUT SPECIFICATIONS |
| Non-RoHs | RoHs | VOLTAGE | NO LOAD | FULL LOAD | VOLTAGE | RIPPLE | CURRENT |
| J10-20 | J10-20/Y | 0V-12Vdc | <250 mA | <1.0A | 0V-200Vdc | <0.5%(1V p-p) | 50 mA |
| J10-30 | J10-30/Y | 0V-12Vdc | <250 mA | <1.0A | 0V-300Vdc | <0.5%(1.5V p-p) | 33.3 mA |
| J10-40 | J10-40/Y | 0V-12Vdc | <250 mA | <1.0A | 0V-400Vdc | <0.5%(2V p-p) | 25 mA |
| J10-50 | J10-50/Y | 0V-12Vdc | <250 mA | <1.0A | 0V-500Vdc | <0.05%(025V p-p) | 20 mA |
| J10-60 | J10-60/Y | 0V-12Vdc | <250 mA | <1.0A | 0V-600Vdc | <0.05%(0.3V p-p) | 16 mA |
| J10-80 | J10-80/Y | 0V-12Vdc | <250 mA | <1.0A | 0V-800Vdc | <0.05%(0.4V p-p) | 12.5 mA |
| J10-100 | J10-100/Y | 0V-12Vdc | <250 mA | <1.0A | 0V-1kVdc | <0.05%(0.5V p-p) | 10 mA |
| J10-120 | J10-120/Y | 0V-12Vdc | <250 mA | <1.0A | 0V-1.2kVdc | <0.05%(0.6V p-p) | 8.3 mA |
| J10-150 | J10-150/Y | 0V-12Vdc | <250 mA | <1.0A | 0V-1.5kVdc | <0.05%(0.75V p-p) | 6.6mA |
| J10-200 | J10-200/Y | 0V-12Vdc | <250 mA | <1.0A | 0V-2kVdc | <0.25%(5V p-p) | 5 mA |
| J10-300 | J10-300/Y | 0V-15Vdc | <230 mA | <920 mA | 0V-3kVdc | <0.25%(7.5V p-p) | 3.3mA |
| J10-400 | J10-400/Y | 0V-15Vdc | <230 mA | <920 mA | 0V-4kVdc | <0.25%(10V p-p) | 2.5 mA |
| J10-500 | J10-500/Y | 0V-15Vdc | <230 mA | <920 mA | 0V-5kVdc | <0.25%(12.5V p-p) | 2 mA |
| J10-600 | J10-600/Y | 0V-15Vdc | <230 mA | <920 mA | 0V-6kVdc | <0.25%(15V p-p) | 1.66 mA |
