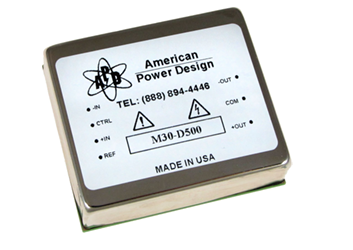

M30-D500高壓DC/DC轉換器
發布于：2025-03-07 11:06:40
品牌名稱：American Power Design(APD)
重要參數：
輸入電壓：10-20Vdc
輸出電壓：0V-+/-500 Vdc
輸出功率：30W
| M30系列 |
| OUTPUT SPECIFICATIONS | MODEL NUMBER/INPUT RANGE |
| VOLTAGE | CURRENT | 10-20VDC | 18-36VDC |
| Non-RoHs | RoHs | Non-RoHs | RoHs |
| 0V-48 Vdc | 625 mA | M30-S48 | M30-S48/Y | M30-S48/A | M30-S48/A/Y |
| 0V-+/-48Vdc | 312 mA | M30-D48 | M30-D48/Y | M30-D48/A | M30-D48/A/Y |
| 0V-100Vdc | 300 mA | M30-S100 | M30-S100/Y | M30-S100/A | M30-S100/A/Y |
| 0V-+/-100Vdc | 150 mA | M30-D100 | M30-D100/Y | M30-D100/A | M30-D100/A/Y |
| 0V-150 Vdc | 200 mA | M30-S150 | M30-S150/Y | M30-S150/A | M30-S150/A/Y |
| 0V-+/-150 Vdc | 100 mA | M30-D150 | M30-D150/Y | M30-D150/A | M30-D150/A/Y |
| 0V-200 Vdc | 150 mA | M30-S200 | M30-S200/Y | M30-S200/A | M30-S200/A/Y |
| 0V-+/-200 Vdc | 75 mA | M30-D200 | M30-D200/Y | M30-D200/A | M30-D200/A/Y |
| 0V-300 Vdc | 100 mA | M30-S300 | M30-S300/Y | M30-S300/A | M30-S300/A/Y |
| 0V-+/-300 Vdc | 50 mA | M30-D300 | M30-D300/Y | M30-D300/A | M30-D300/A/Y |
| 0V-400 Vdc | 75 mA | M30-S400 | M30-S400/Y | M30-S400/A | M30-S400/A/Y |
| 0V-+/-400 Vdc | 37 mA | M30-D400 | M30-D400/Y | M30-D400/A | M30-D400/A/Y |
| 0V-500 Vdc | 60 mA | M30-S500 | M30-S500/Y | M30-S500/A | M30-S500/A/Y |
| 0V-+/-500 Vdc | 30 mA | M30-D500 | M30-D500/Y | M30-D500/A | M30-D500/A/Y |
| 0V-600 Vdc | 50 mA | M30-S600 | M30-S600/Y | M30-S600/A | M30-S600/A/Y |
| 0V-800 Vdc | 37 mA | M30-S800 | M30-S800/Y | M30-S800/A | M30-S800/A/Y |
| 0V-1000 Vdc | 30 mA | M30-S1000 | M30-S1000/Y | M30-S1000/A | M30-S1000/A/Y |
| M10系列 |
| OUTPUT SPECIFICATIONS | MODEL NUMBER/INPUT RANGE |
| VOLTAGE | CURRENT | 10-20VDC | 18-36VDC |
| Non-RoHs | RoHs | Non-RoHs | RoHs |
| 0V-24 Vdc | 416 mA | M10-S24 | M10-S24/Y | M10-S24/A | M10-S24/AY |
| 0V-+/-24 Vdc | 208 mA | M10-D24 | M10-D24/Y | M10-D24/A | M10-D24/A/Y |
| 0V-48 Vdc | 208 mA | M10-S48 | M10-S48/Y | M10-S48/A | M10-S48/AY |
| 0V-+/-48 Vdc | 104 mA | M10-D48 | M10-D48/Y | M10-D48/A | M10-D48/A/Y |
| 0V-100Vdc | 100 mA | M10-S100 | M10-S100/Y | M10-S100/A | M10-S100/A/Y |
| 0V-+/-100Vdc | 50 mA | M10-D100 | M10-D100/Y | M10-D100/A | M10-D100/A/Y |
| 0V-150 Vdc | 66 mA | M10-S150 | M10-S150/Y | M10-S150/A | M10-S150/A/Y |
| 0V-+/-150 Vdc | 33 mA | M10-D150 | M10-D150/Y | M10-D150/A | M10-D150/AY |
| 0V-200 Vdc | 50 mA | M10-S200 | M10-S200/Y | M10-S200/A | M10-S200/A/Y |
| 0V-+/-200 Vdc | 25 mA | M10-D200 | M10-D200/Y | M10-D200/A | M10-D200/A/Y |
| 0V-300 Vdc | 33mA | M10-S300 | M10-S300/Y | M10-S300/A | M10-S300/A/Y |
| 0V-+/-300 Vdc | 16 mA | M10-D300 | M10-D300/Y | M10-D300/A | M10-D300/A/Y |
| 0V-400 Vdc | 25 mA | M10-S400 | M10-S400/Y | M10-S400/A | M10-S400/A/Y |
| 0V-+/-400 Vdc | 12 mA | M10-D400 | M10-D400/Y | M10-D400/A | M10-D400/A/Y |
| 0V-500 Vdc | 20 mA | M10-S500 | M10-S500/Y | M10-S500/A | M10-S500/A/Y |
| 0V-+/-500 Vdc | 10 mA | M10-D500 | M10-D500/Y | M10-D500/A | M10-D500/A/Y |
| 0V-600 Vdc | 16 mA | M10-S600 | M10-S600/Y | M10-S600/A | M10-S600/A/Y |
| 0V-800 Vdc | 12 mA | M10-S800 | M10-S800/Y | M10-S800/A | M10-S800/A/Y |
| 0V-1000 Vdc | 10 mA | M10-S1000 | M10-S1000/Y | M10-S1000/A | M10-S1000/A/Y |
